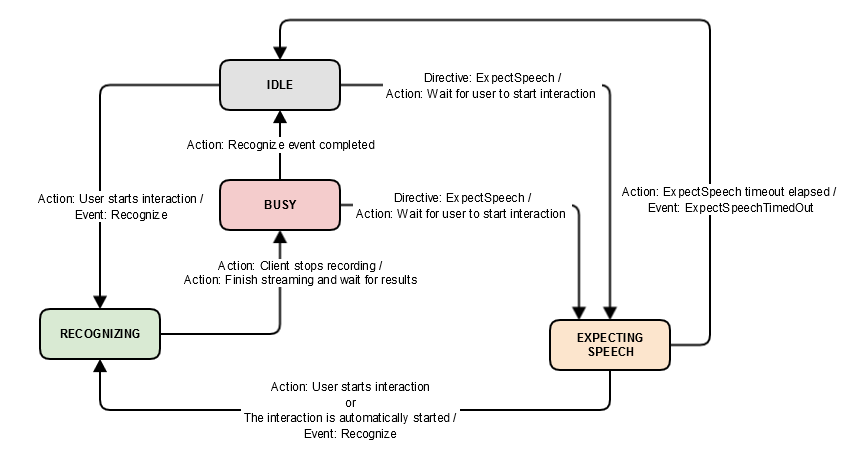

The following diagram illustrates state changes driven by SpeechRecognizer components. Boxes represent SpeechRecognizer states and the connectors indicate state transitions.

SpeechRecognizer has the following states:

IDLE: Prior to capturing user speech, SpeechRecognizer should be in an idle state. SpeechRecognizer should also return to an idle state after a speech interaction with AVS has concluded. This can occur when a speech request has been successfully processed or when an ExpectSpeechTimedOut event has elapsed.

Additionally, SpeechRecognizer may return to an idle state during a multiturn interaction, at which point, if additional speech is required from the user, it should transition from the idle state to the expecting speech state without a user starting a new interaction.

RECOGNIZING: When a user begins interacting with your client, specifically when captured audio is streamed to AVS, SpeechRecognizer should transition from the idle state to the recognizing state. It should remain in the recognizing stateuntil the client stops recording speech (or streaming is complete), at which point your SpeechRecognizer component should transition from the recognizing state to the busy state.

BUSY: While processing the speech request, SpeechRecognizer should be in the busy state. You cannot start another speech request until the component transitions out of the busy state. From the busy state, SpeechRecognizer will transition to the idle state if the request is successfully processed (completed) or to the expecting speech state if Alexa requires additional speech input from the user.

EXPECTING SPEECH: SpeechRecognizer should be in the expecting speech state when additional audio input is required from a user. From expecting speech, SpeechRecognizer should transition to the recognizing state when a user interaction occurs or the interaction is automatically started on the user’s behalf. It should transition to the idle state if no user interaction is detected within the specified timeout window.
